Tekniset tiedot:
Prosessorituki:
Tukee AMD AM4-kantaisia Ryzen 2000 ja 3000 -sarjan prosessoreja
Piirisarja:
AMD X570
Muisti:
4 x DIMM, maks. 64GB
Dual Channel DDR4 -muistiarkkitehtuuri
Tukee:
- AMD Ryzen series CPUs (Matisse): DDR4 4200+(OC) / 4133(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 MHz
- AMD Ryzen series CPUs (Pinnacle Ridge): DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 MHz
- AMD Ryzen series CPUs (Picasso): DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 MHz
Audio:
Realtec ALC1200
Verkkokortti:
Intel I211AT Gigabit LAN
Laajennuspaikat:
AMD Ryzen series CPUs (Matisse): 2 x PCI Express 4.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3))*
AMD Ryzen series CPUs (Pinnacle Ridge): 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3))*
AMD Ryzen series CPUs (Picasso): 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x8 (PCIE1); dual at x8 (PCIE1) / x4 (PCIE3))*
* Supports NVMe SSD as boot disks
- 1 x PCI Express 4.0 x1 Slot
- Supports AMD Quad CrossFireX and CrossFireX
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
Liitännät (sisäiset):
8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
1 x Hyper M.2 Socket (M2_1), supports M Key type 2242/2260/2280/22110 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Pinnacle Ridge and Picasso)*
1 x Hyper M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Pinnacle Ridge and Picasso)*
* Supports NVMe SSD as boot disks
* Supports ASRock U.2 Kit
1 x COM Port Header
1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x AMD Fan LED Header
* The AMD Fan LED Header is compatible with a regular RGB LED stripe.
* The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) and length up to 2.5M.
1 x RGB LED Header
* Supports in total up to 12V/3A, 36W LED Strip
1 x Addressable LED Header
* Supports in total up to 5V/3A, 15W LED Strip
1 x CPU Fan Connector (4-pin)
* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
* The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
* The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
* CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use.
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Audio Connector
1 x AMD LED Fan USB Header
1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt AIC Card only)
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

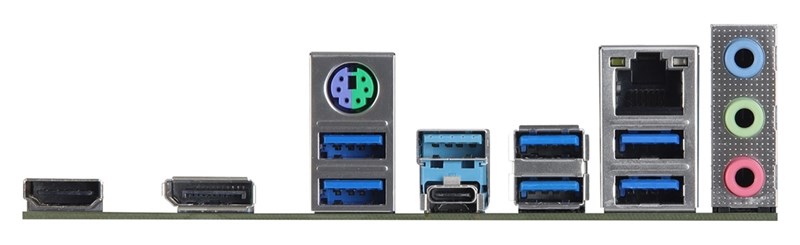

Liitännät (takana):
3 x Antenna Ports (on I/O Panel Shield)
1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
1 x DisplayPort 1.2
1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
6 x USB 3.2 Gen1 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
Tuetut käyttöjärjestelmät:
Microsoft Windows 10 64-bit
Emolevyn tyyppi:
Micro ATX (24,4 x 24,4 cm)
