Prosessorituki:
AMD AM4 Socket
Tukee 3. ja 2. sukupolven AMD Ryzen / Ryzen with Radeon Vega Graphics ja 2. sukupolven AMD Ryzen with Radeon Graphics -prosessoreja
Piirisarja:
AMD X570
Muisti:
4 x DDR4 DIMM, maks. 128GB
Dual Channel -muistiarkkitehtuuri
Tukee:
- 3rd Gen AMD Ryzen™ Processors: DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 /4533 /4600 MHz by A-XMP OC MODE
- 2nd Gen AMD Ryzen™ Processors, 1st and 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors: DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667 /2800 / 2933 /3000 /3066 /3200 /3466 /3600 MHz by A-XMP OC MODE
Audio:
Realtek® ALC1220 Codec
Verkkokortti:
1x Realtek® RTL8125 2.5 Gbps LAN controller
WLAN & Bluetooth:
Intel® Wi-Fi 6 AX200
- Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps
- Supports Bluetooth® 5
- The Wireless module is pre-install in the M2_4 (Key-E) slot
Laajennuspaikat:
2x PCIe 4.0/ 3.0 x16 slots (PCI_E1, PCI_E3)
- 3rd Gen AMD Ryzen™ support PCIe 4.0 x16/x0, x8/x8 modes
- 2nd Gen AMD Ryzen™ support PCIe 3.0 x16/x0, x8/x8 modes
- Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support PCIe 3.0 x8 mode1
1x PCIe 4.0/ 3.0 x16 slot (PCI_E5, supports x4 mode)
2x PCIe 4.0/ 3.0 x1 slots2
Supports 2-Way NVIDIA® SLI® Technology
Supports 3-Way AMD® CrossFire™ Technology
Liitännät (sisäiset):
1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors
4x SATA 6Gb/s connectors
2x M.2 slots (M2_2/ M2_3, Key M)
1x M.2 slot (M2_1, Key M)
2x USB 2.0 connectors (support additional 4 USB 2.0 ports)
2x USB 3.2 Gen 1 connectors (support additional 4 USB 3.2 Gen 1 ports)
1x USB 3.2 Gen 2 Type-C Port
1x 4-pin CPU fan connector
5x 4-pin system fan connectors
1x 4-pin water-pump connector
1x Front panel audio connector
2x System panel connectors
1x TPM module connector
1x Clear CMOS jumper
1x Chassis Intrusion connector
1x Power button
1x Reset button
1x 4-pin RGB LED connector
2x 3-pin RAINBOW LED connectors
1x 3-pin CORSAIR connector
1x 2-pin LED power input
1x Debug Code LED
4x EZ Debug LEDs

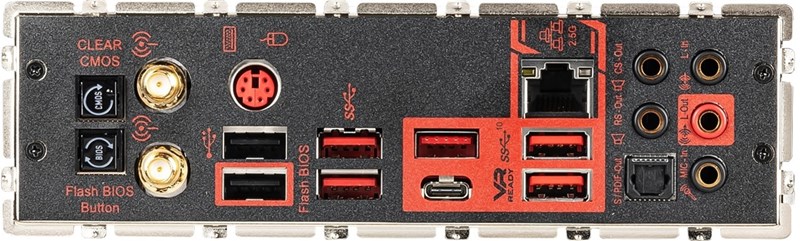

Liitännät (takana):
Clear CMOS Button
Wi-Fi /Bluetooth Antenna Connectors
PS/2 GAMING Device Port
Realtek 2.5G LAN
HD Audio Connectors
Flash BIOS Button
2 x USB 2.0 Ports
2 x USB 3.2 Gen1 Ports
USB 3.2 Gen2 Ports Type A+C
2 x USB 3.2 Gen2 Ports
Tuetut käyttöjärjestelmät:
Microsoft Windows 10 64-bit
Emolevyn tyyppi:
ATX (30,5 x 24,4 cm)
