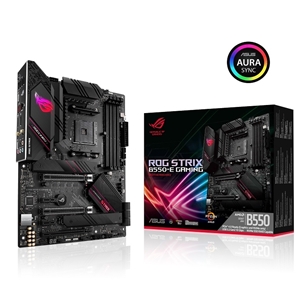

Asus ROG STRIX B550-E GAMING, ATX-emolevy

Tekniset tiedot:

Prosessorituki:
3. sukupolven AMD Ryzen -prosessorit
AM4

Piirisarja:
AMD B550

Muistituki:
4 x DDR4 DIMM, maks. 128GB
Dual Channel -muistiarkkitehtuuri
Tukee 4400(O.C) / 4266(O.C) / 4133(O.C) / 4000(O.C) / 3866(O.C) / 3600(O.C) / 3466(O.C.) / 3200 / 3000 / 2800 / 2666 / 2400 / 2133 MHz

Audio:
ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A

Verkkokortti:
1 x Intel® I225-V 2.5Gb Ethernet

WLAN & Bluetooth:
Intel® Wi-Fi 6 AX200
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
Supports up to 2.4/5GHz transfer speed
Supports channel bandwidth: HT20/HT40/HT80/HT160
Bluetooth v5.1
*BT 5.1 function will be ready in Windows 10 build 19041 or later.

Laajennuspaikat:
AMD Socket AM4 for 3rd Gen AMD Ryzen™ Processors*
2 x PCIe 4.0 x16 SafeSlots (support x16 or x8/x8 modes)
AMD B550 chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)*
2 x PCIe 3.0 x1
*Share bandwidth with PCIe3.0 x1_1, PCIe3.0 x1_2

Supports AMD® 3-way CrossFireX™ Technology
Supports NVIDIA 2-Way SLI® Technology

Liitännät (sisäiset):
Fan and cooling related
1 x 4-Pin AIO_Pump header
1 x 4-Pin CPU fan header
1 x 4-Pin CPU_OPT fan header
3 x 4-Pin Chassis fan headers
Power related
1 x 24-pin main power connector
1 x 8-pin +12V power connector
1 x 4-pin +12V power connector
Storage related
2 x M.2 slots (Key M)
6 x SATA 6Gb/s ports

AMD Socket AM4 for 3rd Gen AMD Ryzen™ Processors*
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
AMD B550 Chipset:
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
6 x SATA 6Gb/s ports
Support Raid 0, 1, 10
** When the M.2_2 Socket 3 is populated , SATA6G_5/6 ports will be disabled.

USB ports
1 x USB 3.2 Gen 2 front panel connector (suppports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
2 x AURA addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x Front panel audio header (AAFP)
1 x S/PDIF header
1 x Speaker header
1 x 10-1 pin System Panel header
1 x Thermal sensor header
1 x Thunderbolt header

Liitännät (ulkoiset):
1 x ASUS Wi-Fi Module
5 x Audio jacks
1 x BIOS FlashBack(TM) button
1 x DisplayPort
1 x HDMI(TM) port
1 x Intel® I225V Ethernet
3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)
4 x USB 2.0 port(s)
1 x USB 2.0 port(s) (1 x audio USB Type-C®)

Tuetut käyttöjärjestelmät:
Windows® 10 - 64 bit

Emolevyn tyyppi:
ATX (30,5 x 24,4 cm)
