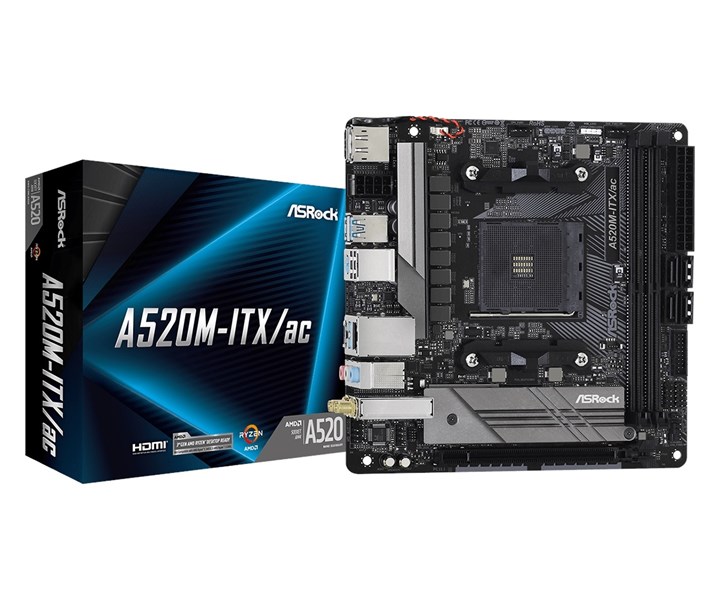

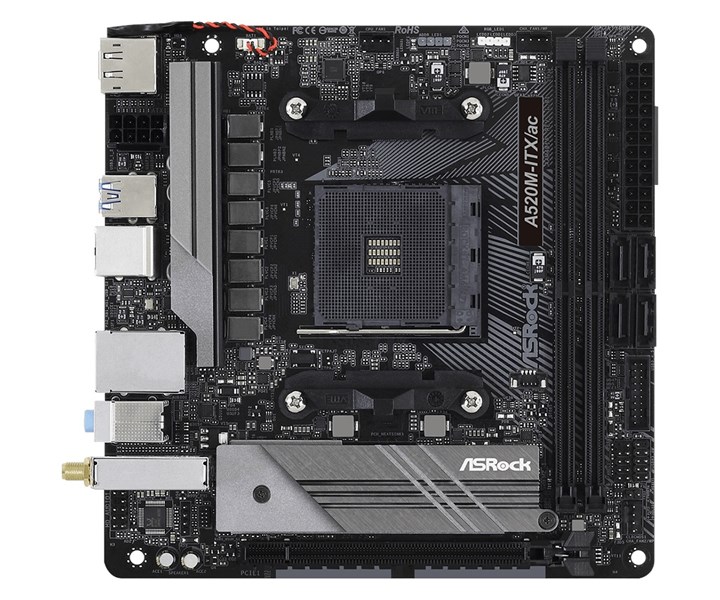

ASRock A520M-ITX/ac, Mini-ITX -emolevy

Tekniset tiedot:

Prosessorituki:
AMD AM4 Socket
Tukee 3. sukupolven AMD AM4 Ryzen / tulevia AMD Ryzen -prosessoreja (3000 ja 4000 -sarjan prosessoreja)*
*Ei yhteensopiva AMD Ryzen 5 3400G ja Ryzen 3 3200G

Piirisarja:
AMD A520

Muisti:
2 x DDR4 DIMM, maks. 64GB
Dual Channel -muistiarkkitehtuuri
Tukee:
 - AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
 - AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory

Audio:
7.1 CH HD Audio (Realtek ALC887 Audio Codec)

Verkkokortti:
PCIE x1 Gigabit LAN 10/100/1000 Mb/s
Realtek RTL8111H

WLAN & Bluetooth:
Intel® 802.11ac WiFi Module
Supports IEEE 802.11a/b/g/n/ac
Supports Dual-Band (2.4/5 GHz)
Supports high speed wireless connections up to 433Mbps
Supports Bluetooth 4.2 + High speed class II

Laajennuspaikat:
1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)
1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O)

Liitännät (sisäiset):
4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
1 x Ultra M.2 Socket (M2_1), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
1 x RGB LED Header
1 x Addressable LED Header
1 x CPU Fan Connector (4-pin)
2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Audio Connector
1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

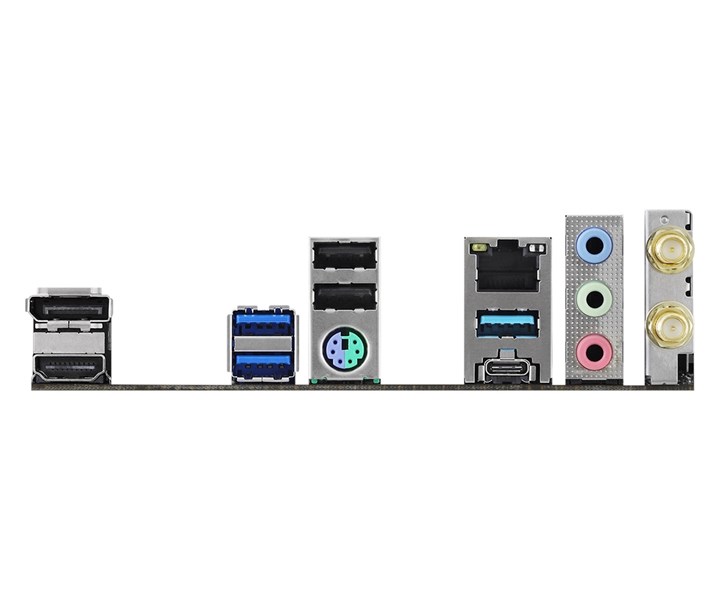

Liitännät (takana):
2 x Antenna Ports
1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
1 x DisplayPort 1.4
2 x USB 2.0 Ports (Supports ESD Protection)
3 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)
1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone

Tuetut käyttöjärjestelmät:
Microsoft Windows 10 64-bit

Emolevyn tyyppi:
Mini-ITX (17,0 x 17,0 cm)
