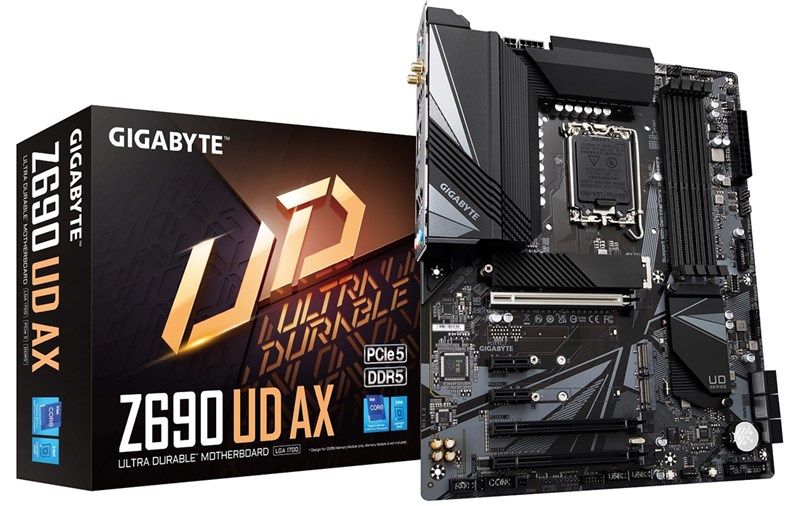

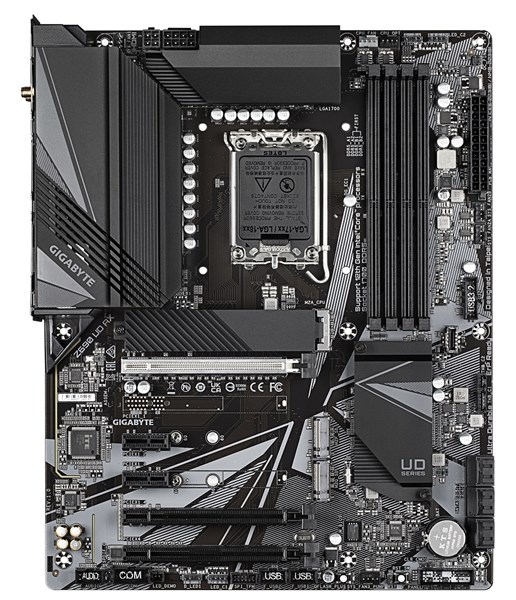

Gigabyte Z690 UD AX, ATX-emolevy (Tarjous! Norm. 239,90€)

Tekniset tiedot:

Prosessorituki:
Tukee 12. sukupolven Intel Core i9 / i7 / i5 -prosessoreja
LGA1700

Piirisarja:
Intel Z690

Muistituki:
4 x DDR5 DIMM, maks. 128GB
Dual Channel -muistiteknologia
Tukee: DDR5 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz

Audio:
Realtek® Audio CODEC

Verkkokortti:
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

WLAN & Bluetooth:
Intel® Wi-Fi 6 AX201
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.2
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

Laajennuspaikat:
1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 5.0 standard.)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
1 x PCI Express x16 slot, running at x1 (PCIEX1_4)
2 x PCI Express x1 slots
(The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)

Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies

Liitännät (sisäiset):
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
3 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x serial port header
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x reset button
1 x reset jumper
1 x Q-Flash Plus button
1 x Clear CMOS jumper

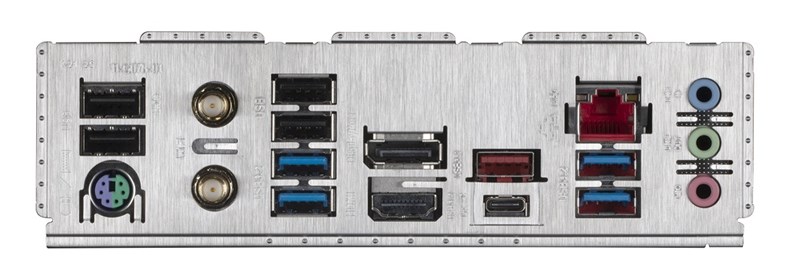

Liitännät (ulkoiset):
1 x PS/2 keyboard/mouse port
2 x SMA antenna connectors (2T2R)
1 x DisplayPort
1 x HDMI port
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

Tuetut käyttöjärjestelmät:
Windows 10 64-bit

Emolevyn tyyppi:
ATX (30,5 x 24,4 cm)
