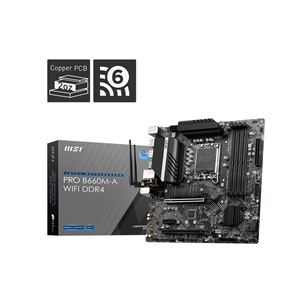

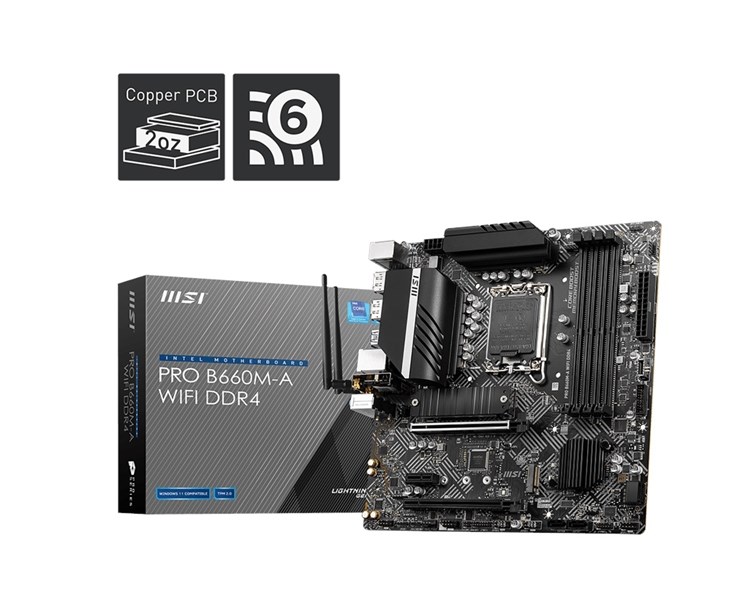

MSI PRO B660M-A WIFI DDR4, mATX-emolevy (Tarjous! Norm. 182,00€)

Tekniset tiedot:

Prosessorituki:
Tukee 12. sukupolven Intel Core, Pentium Gold ja Celeron -prosessoreja
LGA1700

Piirisarja:
Intel B660

Muistituki:
4 x DDR4 DIMM, maks. 128GB
Dual Channel -muistiarkkitehtuuri
Supports 1R 2133/2666/3200 MHz (by JEDEC & POR)
Max overclocking frequency:

• 1DPC 1R Max speed up to 4800+ MHz
• 1DPC 2R Max speed up to 4000+ MHz
• 2DPC 1R Max speed up to 4000+ MHz
• 2DPC 2R Max speed up to 3600+ MHz

Audio:
Realtek® ALC897 Codec

Verkkokortti:
1x Realtek® RTL8125BG 2.5Gbps LAN controller

WLAN & Bluetooth:
Intel® Wi-Fi 6
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.2

Laajennuspaikat:
2x PCIe x16 slots
PCI_E1 (From CPU)
Support PCIe 4.0 x16

PCI_E3 (From B660 chipset)
Support PCIe 3.0 x4

1x PCIe 3.0 x1 slot (Fom B660 chipset)

Supports AMD® CrossFire™ Technology

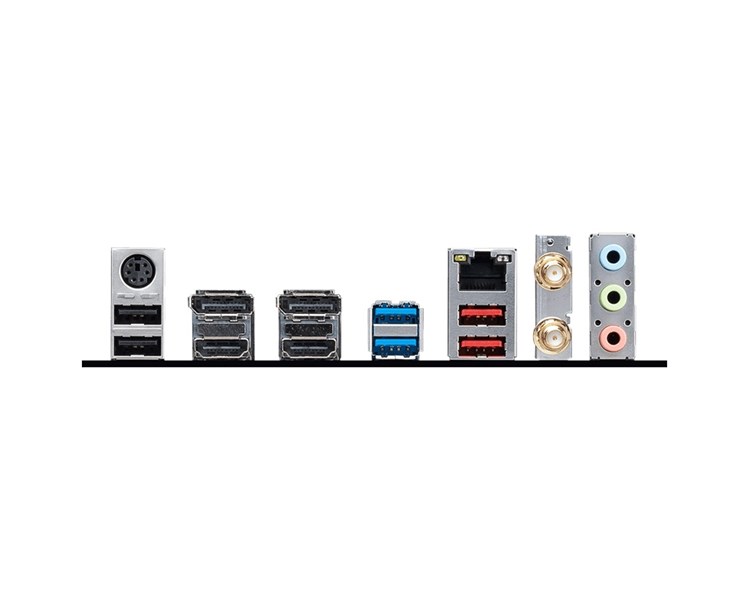

Liitännät (ulkoiset):
Keyboard / Mouse
2 x DisplayPort
2 x USB 3.2 Gen 1 5Gbps Type-A
LAN port
Wi-Fi / Bluetooth
Audio connector
2 x USB 2.0
2 x HDMI
2 x USB 3.2 Gen 2 10Gbps Type-A

Liitännät (sisäiset):
4x SATA 6Gb/s ports (From B660 chipset)
2x M.2 slots (Key M)
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
1x USB 3.2 Gen 1 5Gbps Type-C connector (From B660 chipset)
1x USB 3.2 Gen 1 5Gbps Type-A connector (From ASM1074)
Supports additional 2 USB 3.2 Gen 1 5Gbps ports
2x USB 2.0 Type-A connectors (From B660 chipset)
Supports additional 4 USB 2.0 ports
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
2x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x TPM module connector
1x Tuning Controller connector
1x TBT connector (supports RTD3)
1x Serial port
1x Clear CMOS jumper

LED Features:
1x 4-pin RGB LED connector
2x 3-pin RAINBOW LED connectors
4x EZ Debug LED

Tuetut käyttöjärjestelmät:
Microsoft Windows 10 64-bit, Windows 11 64-bit

Emolevyn tyyppi:
Micro-ATX (24,4 x 24,4 cm)
