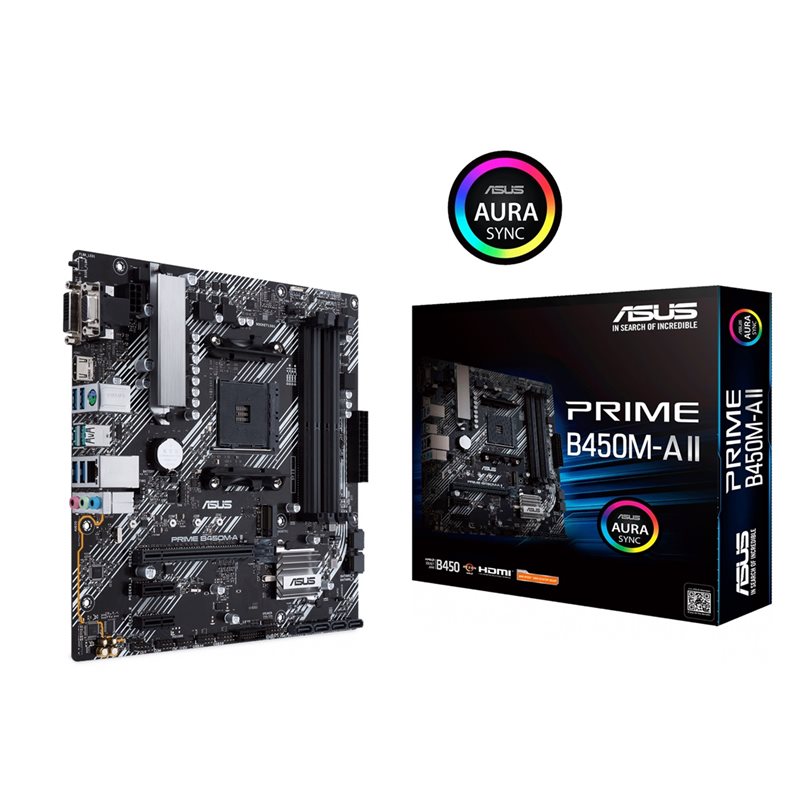

Asus PRIME B450M-A II, mATX-emolevy

Tekniset tiedot:

Prosessorituki:
AMD AM4 -kanta
Tukee: AMD Ryzen™ 5000 Series /  4000 G-Series /  3rd / 2nd / 1st Gen AMD Ryzen™ /  2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics /  Athlon™ with Radeon™ Vega Graphics Processors

Piirisarja:
AMD B450

Muistituki:
4 x DDR4 DIMM, maks. 128GB
Dual Channel -muistiarkkitehtuuri
Tukee: DDR4 4400(O.C) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz

Audio:
Realtek ALC887/897 7.1-Channel High Definition Audio CODEC

Verkkokortti:
Realtek® RTL8111H

Laajennuspaikat:
3rd/2nd/1st Gen AMD Ryzen™ Processors
1 x PCIe 3.0 x16 (x16 mode)
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
1 x PCIe 3.0 x16 (x8 mode)
AMD Athlon™ with Radeon™ Vega Graphics Processors
1 x PCIe 3.0 x16 (x4 mode)
AMD B450 chipset
2 x PCIe 2.0 x1

Liitännät (sisäiset):
1 x CPU Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x SPI TPM header
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x COM port header
1 x Speaker connector
1 x RGB Header

Liitännät (ulkoiset):
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A)
4 x USB 3.2 Gen 1 (blue) Type-A
3 x Audio jack(s)
1 x BIOS FlashBack™ Button(s)

Tuetut käyttöjärjestelmät:
Windows 10 64-bit
Windows 7 64-bit (To support Windows 7 64-bit, please install an AMD Ryzen™ 2nd Generation or Ryzen™ 1st Generation Processor.)

Emolevyn tyyppi:
mATX (24,4 x 24,4 cm)
