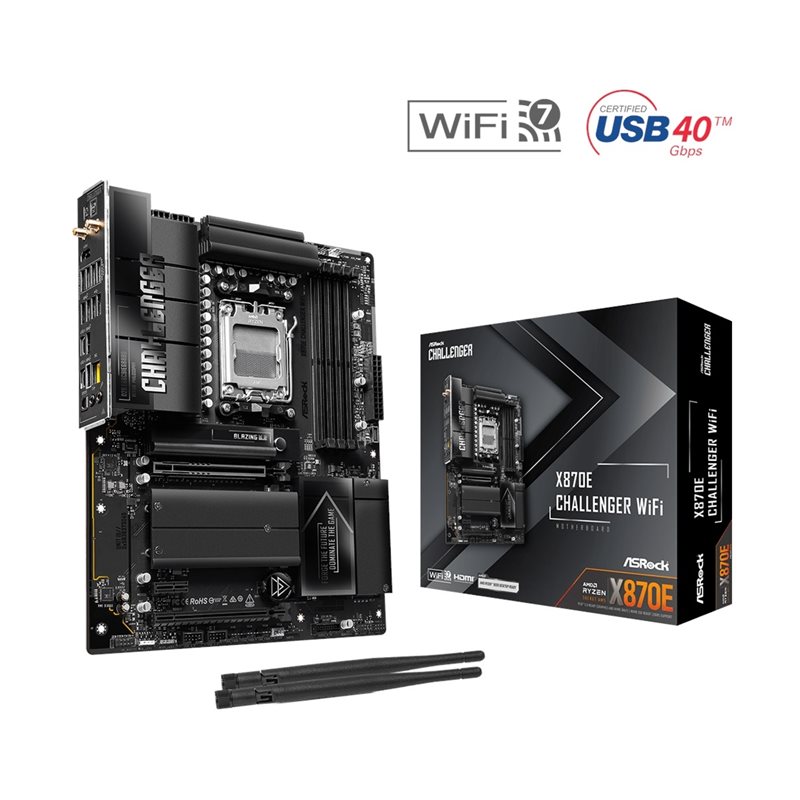

ASRock X870E Challenger WiFi, ATX-emolevy

Tekniset tiedot:

Prosessorituki:
AMD AM5 -kanta
Tukee: AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Piirisarja:
AMD X870E

Muisti:
4 x DDR5 DIMM, maks. 256 GB
Dual Channel -muistiarkkitehtuuri
Tukee DDR5 ECC/non-ECC, un-buffered -muisteja, jopa 8200+ MT/s (OC)
Tukee AMD EXPO™ ja Intel® XMP -profiileja

Audio:
Realtek ALC4082, 7.1 kanavainen HD Audio
Nahimic Audio

Verkkokortti:
1 x Realtek RTL8126 5Gb Ethernet

WLAN & Bluetooth:
Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports 160MHz channel bandwidth with 6GHz frequency band
Supports MU-MIMO
Bluetooth® v5.4

Laajennuspaikat:
AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors:
1 x PCIe 5.0 x16 slot (supports x16 mode)*

AMD X870E Chipset:
1 x PCIe 3.0 x16 slot (supports x2 mode)
1 x PCIe 3.0 x1 slot
1 x M.2 slot (Key E) for Wi-Fi/BT module

*Ryzen™ 8000 -sarjan prosessoreilla PCIe 4.0 x8 (Phoenix 1) tai PCIe 4.0 x4 (Phoenix 2)

Liitännät (sisäiset):
Fan and Cooling related
2 x 4-pin CPU Fan headers
1 x 4-pin AIO Pump header
1 x 4-pin Water Pump header
3 x 4-pin Chassis Fan headers

Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors

Storage related
AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors:
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)*

AMD X870E Chipset:
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

2 x SATA 6Gb/s ports

*Ryzen™ 8000 -sarjan prosessoreilla PCIe 4.0 x4

USB
1 x USB 20Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support additional 4 USB 5Gbps ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous
1 x RGB LED header
3 x Addressable LED headers
1 x Front Panel Audio header
1 x Power LED and Speaker header

Liitännät (takana):
2 x USB4® (40Gbps) ports (2 x USB Type-C®, USB PD up to 15W)
5 x USB 10Gbps ports (5 x Type-A, incl. 2 x Lightning Gaming Ports)
3 x USB 5Gbps ports (3 x Type-A, incl. 2 x Ultra USB Power)
2 x USB 2.0 ports
1 x HDMI™ port
2 x Wi-Fi antenna ports
1 x Realtek 5Gb Ethernet
2 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS Flashback button
1 x Clear CMOS button

Tuetut käyttöjärjestelmät:
Windows® 11 64-bit
Windows® 10 64-bit (Wi-Fi 7 -moduuli tuettu vain Windows 11:ssä)

Emolevyn tyyppi:
ATX (30,5 x 24,4 cm)
