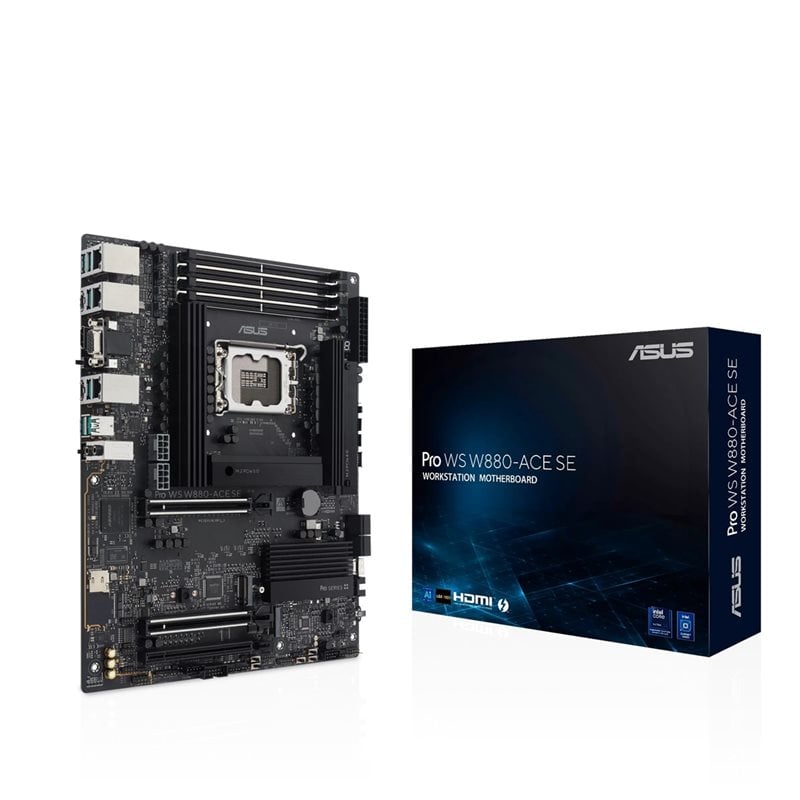

Asus Pro WS W880-ACE SE, ATX-emolevy

Tekniset tiedot:

Prosessorituki:
Intel LGA1851 -kanta
Tukee: Intel® Core™ Ultra Processors (Series 2)

Piirisarja:
Intel® W880

Muisti:
4 x DDR5 DIMM, maks. 256 GB
Dual Channel -muistiarkkitehtuuri
Tukee: Up to 9066+MT/s (OC), ECC and Non-ECC Un-buffered, Clocked Unbuffered DIMM (CUDIMM)

Audio:
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC

Verkkokortti:
2 x Intel® 2.5Gb Ethernet
1 x Realtek 1Gb Ethernet dedicated for AST2600

Laajennuspaikat:
Intel® Core™ Ultra Processors (Series 2):
2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)

Intel® W880 Chipset:
1 x PCIe 4.0 x16 slot (supports x4 mode)

Liitännät (sisäiset):
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
5 x 4-pin Chassis Fan headers
1 x W_PUMP+ header

Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector

Storage Related
Intel® Core™ Ultra Processors (Series 2):
M.2_1 slot (Key M), type 2242/2260/2280  (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe4.0 x4 mode)

Intel® W880 Chipset:
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

SlimSAS_1 connector supports PCIe 4.0 x4 mode or up to 4 SATA devices via an adapter cable. The cable is purchased separately.
4 x SATA 6Gb/s ports

USB
1 x USB 20Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 header supports 4 additional USB 2.0 ports

Miscellaneous
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front Panel System header
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4®) header
1 x SPI TPM header (14-1 pin)

Liitännät (takana):
1 x Thunderbolt™ 4 USB Type-C® port
1 x USB 20Gbps port (1 x USB Type-C®)
6 x USB 10Gbps ports (6 x Type-A)
1 x HDMI™ port
2 x Intel® 2.5Gb Ethernet port
1 x Realtek 1Gb Ethernet dedicated for AST2600
1 x VGA port from AST2600
2 x Audio jacks
1 x BIOS FlashBack™ button
1 x Clear CMOS button
1 x Thunderbolt™ 4 USB Type-C® port
1 x USB 20Gbps port (1 x USB Type-C®)
6 x USB 10Gbps ports (6 x Type-A)
1 x HDMI™ port
2 x Intel® 2.5Gb Ethernet port
1 x Realtek 1Gb Ethernet dedicated for AST2600
1 x VGA port from AST2600
2 x Audio jacks
1 x BIOS FlashBack™ button
1 x Clear CMOS button

Tuetut käyttöjärjestelmät:
Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)

Emolevyn tyyppi:
ATX (30,5 x 24,4 cm)
