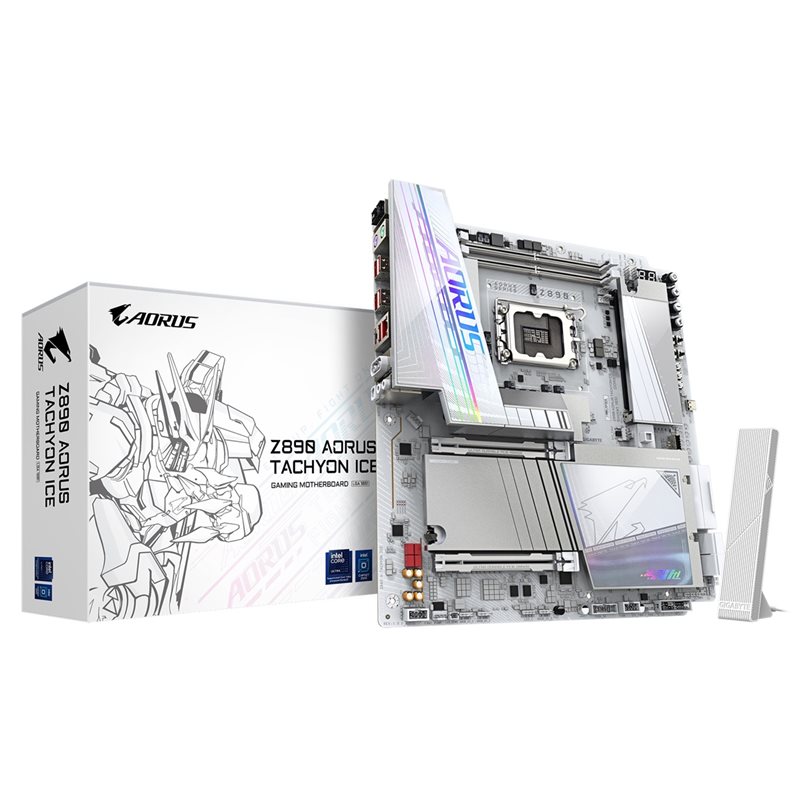

Gigabyte Z890 AORUS TACHYON ICE, E-ATX -emolevy

Tekniset tiedot:

Prosessorituki:
LGA1851 -kanta
Tukee: Intel® Core™ Ultra Processors

Piirisarja:
Intel® Z890

Muisti:
2 x DDR5 DIMM, maks. 128 GB
Dual channel -muistiarkkitehtuuri
Tukee: DDR5 9500(O.C) / 9466(O.C) / 9333(O.C) / 9200(O.C)/ 9066(O.C) / 8933(O.C) /8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules

Audio:
Realtek® ALC1220 CODEC

Verkkokortti:
Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)

WLAN & Bluetooth:
Realtek® Wi-Fi 7 RTL8922AE

• 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
• BLUETOOTH 5.4
• Support for 11be 160MHz wireless standard

Laajennuspaikat:
CPU:

• 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
• 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x8 (PCIEX8)

Liitännät (sisäiset):
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
3 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header

CPU:

• 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0x4/x2 SSD support) (M2A_CPU)
• 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2B_CPU)

Chipset:

• 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
• 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0x4/x2 SSD support) (M2M_SB)
• 4 x SATA 6Gb/s connectors

1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x Thunderbolt™ 4 connector (USB4® USB Type-C® port)
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x noise detection header
2 x temperature sensor headers
1 x Clear CMOS jumper
1 x power button (PWR)
1 x reset button (RST)
1 x Clear CMOS button (CMOS)
1 x Cold Reset button (RTY)
1 x Protection Mode button (LIMP_MODE)
1 x CPU Clock up button (CLK+)
1 x CPU Clock down button (CLK-)
1 x BIOS switch (BIOS_SW)
1 x LN2 Mode switch (LN2)
1 x OC Trigger switch (TGR)
1 x OC Ignition switch (OC_IGNIT)
2 x reserved switches (RSV_SW1/RSV_SW2)
Voltage Measurement Points

Liitännät (takana):
1 x Q-Flash Plus button
1 x Protection Mode button
1 x PS/2 keyboard port
1 x PS/2 mouse port
2 x antenna connectors (2T2R)
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
5 x USB 3.2 Gen 2 Type-A ports (red)
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks

Tuetut käyttöjärjestelmät:
Windows 11 64-bit

Emolevyn tyyppi:
E-ATX (30,5 x 28,5 mm)
