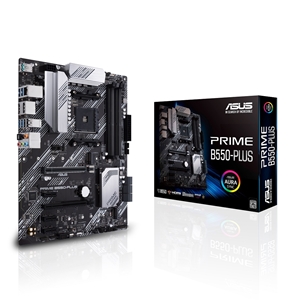

Asus PRIME B550-PLUS, ATX-emolevy

Tekniset tiedot:

Prosessorituki:
3. sukupolven AMD Ryzen -prosessorit
AM4

Piirisarja:
AMD B550

Muistituki:
4 x DDR4 DIMM, maks. 128GB
Dual Channel -muistiarkkitehtuuri
Tukee DDR4 4400(O.C)/4000(O.C)/3866(O.C)/3600(O.C)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz

Audio:
Realtek ALC887 7.1-Channel High Definition Audio CODEC

Verkkokortti:
1 x Realtek RTL8111H 1Gb Ethernet

Laajennuspaikat:
3rd Gen AMD Ryzen™ Processors
1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD B550 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)*
3 x PCIe 3.0 x1 slot**
*Support PCIe bifurcation for RAID on CPU function.
**PCIE 3.0 X16_2 runs x2 mode when PCIEX1_2 or PCIEX1_3 slots is populated.

Liitännät (sisäiset):
Fan and cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x AIO Pump Header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
3rd Gen AMD Ryzen™ Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
AMD B550 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110(supports PCIe 3.0 x4 & SATA modes)
Support Raid 0, 1, 10
*M2_2 shares bandwidth with SATA6G_56. When M.2_2 is populated, SATA6G_56 will be disabled.
6 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
1 x AURA Addressable Gen 2 header
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header
1 x T-Sensor header
1 x Thunderbolt Header

Liitännät (ulkoiset):
2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Realtek® 8111H Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port

Tuetut käyttöjärjestelmät:
Windows® 10 - 64 bit

Emolevyn tyyppi:
ATX ( x cm)
