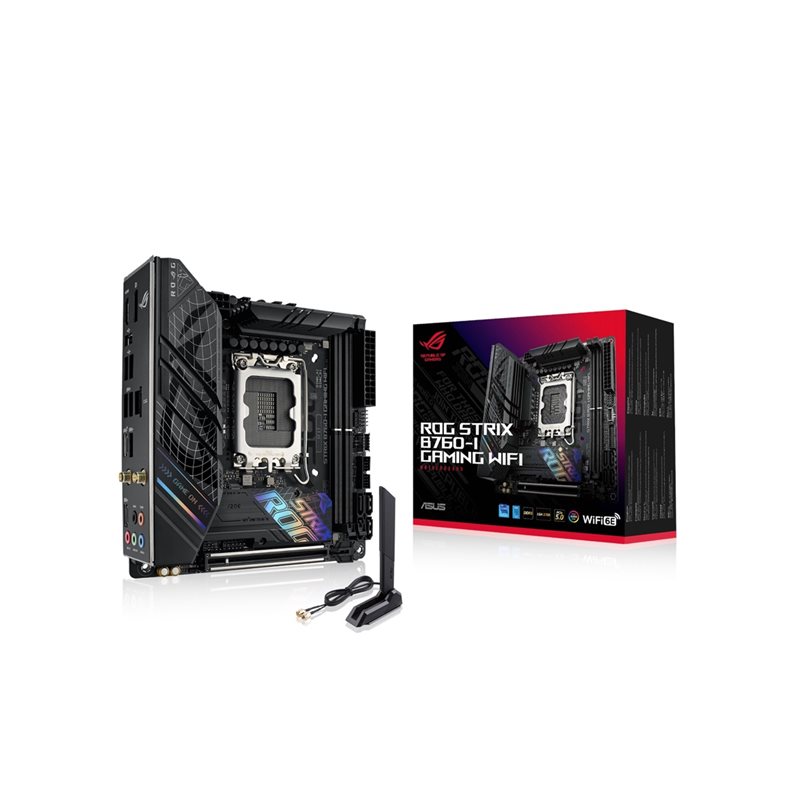

Asus (Outlet) ROG STRIX B760-I GAMING WIFI, Mini-ITX -emolevy

Tekniset tiedot:

Prosessorituki:
LGA1700 kanta
Tukee 13. sukupolven Intel Core ja 12. sukupolven Intel Core, Pentium Gold ja Celeron -prosessoreja

Piirisarja:
Intel B760

Muisti:
2 x DDR5, maks. 64GB
Dual Channel -muistiarkkitehtuuri
Tukee: DDR5 7600(OC)/ 7466(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory

Audio:
ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A

Verkkokortti:
1 x Intel® 2.5Gb Ethernet

WLAN & Bluetooth:
Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band
Bluetooth® v5.3

Laajennuspaikat:
Intel® 13th & 12th Gen Processors:
1 x PCIe 5.0 x16 slot

Liitännät (sisäiset):
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chasis Fan header
1 x 4-pin AIO Pump header

Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector

Storage related
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

Intel® 13th & 12th Gen Processors:
M.2_1 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode)

Intel® B760 Chipset:
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports

USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 headers support additional 2 USB 2.0 ports

Miscellaneous
1 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x 10-1 pin System Panel header
1 x Thermal Sensor header

Liitännät (takana):
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports (3 x Type-A +1 x USB Type-C®)
3 x USB 2.0 ports (3 x Type-A)
1 x HDMI® port
1 x DisplayPort
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet
5 x Audio jacks

Tuetut käyttöjärjestelmät:
Windows® 11, Windows® 10 64-bit

Emolevyn tyyppi:
Mini-ITX (17 x 17 cm)
