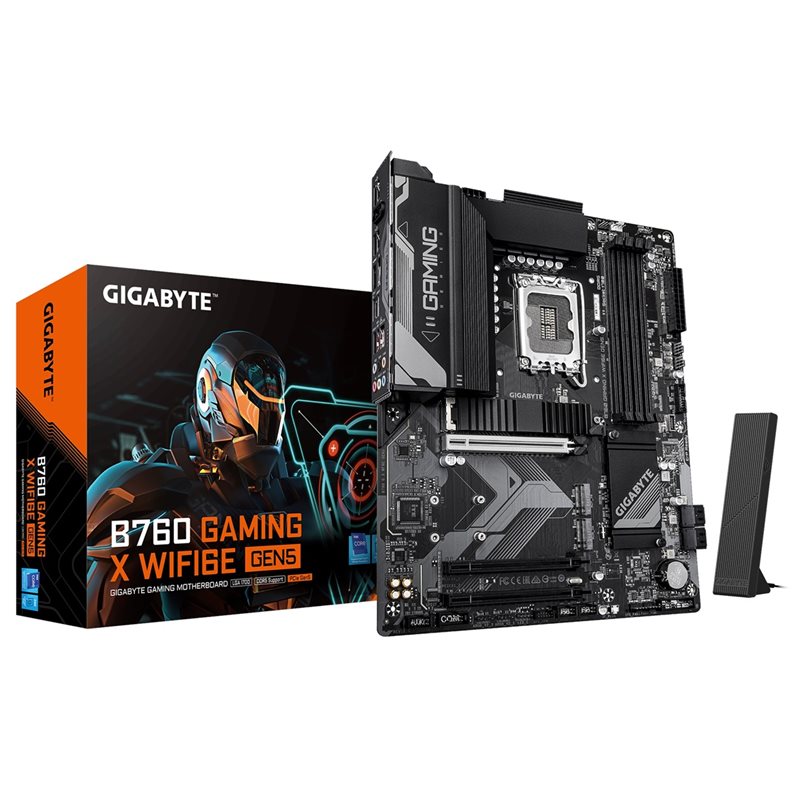

Gigabyte B760 GAMING X WIFI6E GEN5, ATX-emolevy

Tekniset tiedot:

Prosessorituki:
LGA1700 kanta
Tukee 14., 13. ja 12. sukupolven Intel Core, Pentium Gold ja Celeron -prosessoreja

Piirisarja:
Intel B760

Muisti:
4 x DDR5, maks. 256GB
Dual Channel -muistiarkkitehtuuri
Tukee: DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules

Audio:
Realtek® Audio CODEC

Verkkokortti:
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

WLAN & Bluetooth:
Intel® Wi-Fi 6E AX210

• WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
• BLUETOOTH 5.3
• Support for 11ax 160MHz wireless standard

Laajennuspaikat:
CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
Chipset: 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2))

CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB)
4 x SATA 6Gb/s connectors

Liitännät (sisäiset):

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

Liitännät (takana):
1 x USB 3.2 Gen 2 Type-A port (red)
1 x USB Type-C® port, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 port
5 x USB 2.0/1.1 ports
2 x antenna connectors (2T2R)
1 x DisplayPort (Note)
1 x HDMI port (Note)
1 x RJ-45 port
6 x audio jacks

Tuetut käyttöjärjestelmät:
Support for Windows 11 64-bit
Support for Windows 10 64-bit

Emolevyn tyyppi:
ATX (30,5 x 24,4 cm)
