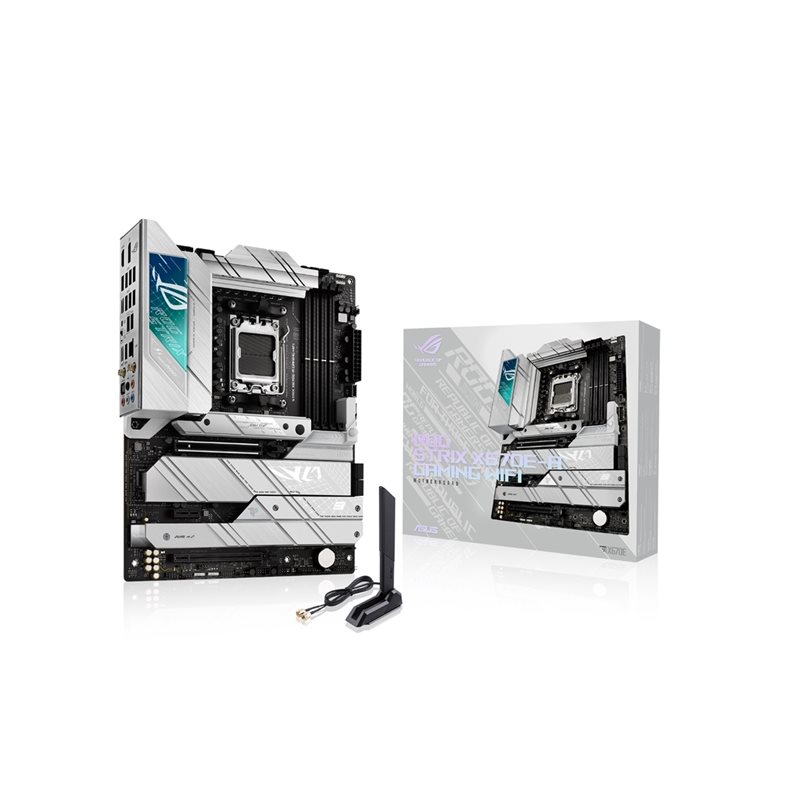

Asus (Outlet) ROG STRIX X670E-A GAMING WIFI, ATX-emolevy

Tekniset tiedot:

Prosessorituki:
AMD AM5 -kanta
Tukee AMD Ryzen 7000 -sarjan työpöytäprosessoreja

Piirisarja:
AMD X670

Muisti:
4 x DDR5 DIMM, maks. 128GB
Dual Channel -muistiarkkitehtuuri
Tukee: DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory

Audio:
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
Savitech SV3H712 AMP

Verkkokortti:
1 x Intel® 2.5Gb Ethernet

WLAN & Bluetooth:
Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.2

Laajennuspaikat:
AMD Ryzen™ 7000 Series Desktop Processors:
1 x PCIe 5.0/4.0/3.0 x16 slot

AMD X670 Chipset:
1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)
1 x PCIe 3.0 x1 slot

Liitännät (sisäiset):
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers

Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector

Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® )
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt™  header

Liitännät (takana):
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
8 x USB 3.2 Gen 2 ports (7 x Type-A, 1 x USB Type-C®)
1 x USB 3.2 Gen 1 port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® I225-V 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™  button
1 x Clear CMOS button

Tuetut käyttöjärjestelmät:
Windows® 11 64-bit

Emolevyn tyyppi:
ATX (30,5 x 24,4 cm)
